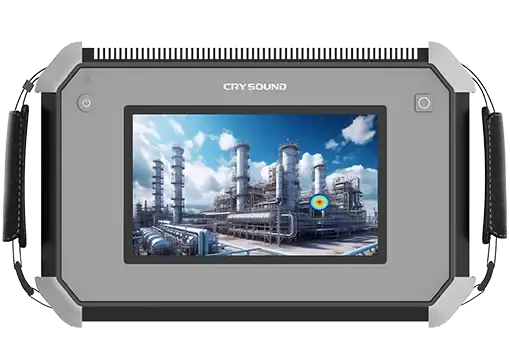

CRY2620 Industrial Acoustic Imaging Camera

CRY2620 is a handheld industrial acoustic imaging camera for real-time localization and assessment of pressurized gas and vacuum leaks. It uses a 64-microphone array and a simplified two-parameter setup for routine industrial inspection.

Key features

• 64 MEMS microphones in a 12 cm array
• Real-time acoustic image display
• Adjustable frequency and dynamic range
• Leak-rate measurement and loss estimation
• Photo, video and audio recording

Applications

• Pressurized gas and vacuum leak detection
• Compressed-air system surveys
• Industrial sound-source localization
• Routine maintenance inspections

Key technical data

• Frequency range: 2 kHz to 40 kHz
• Detection distance: 0.5 m to 70 m
• 7-inch 1024 × 600 touchscreen
• Weight: 1.7 kg; protection rating: IP54
• Operating temperature: -20 °C to +50 °C
