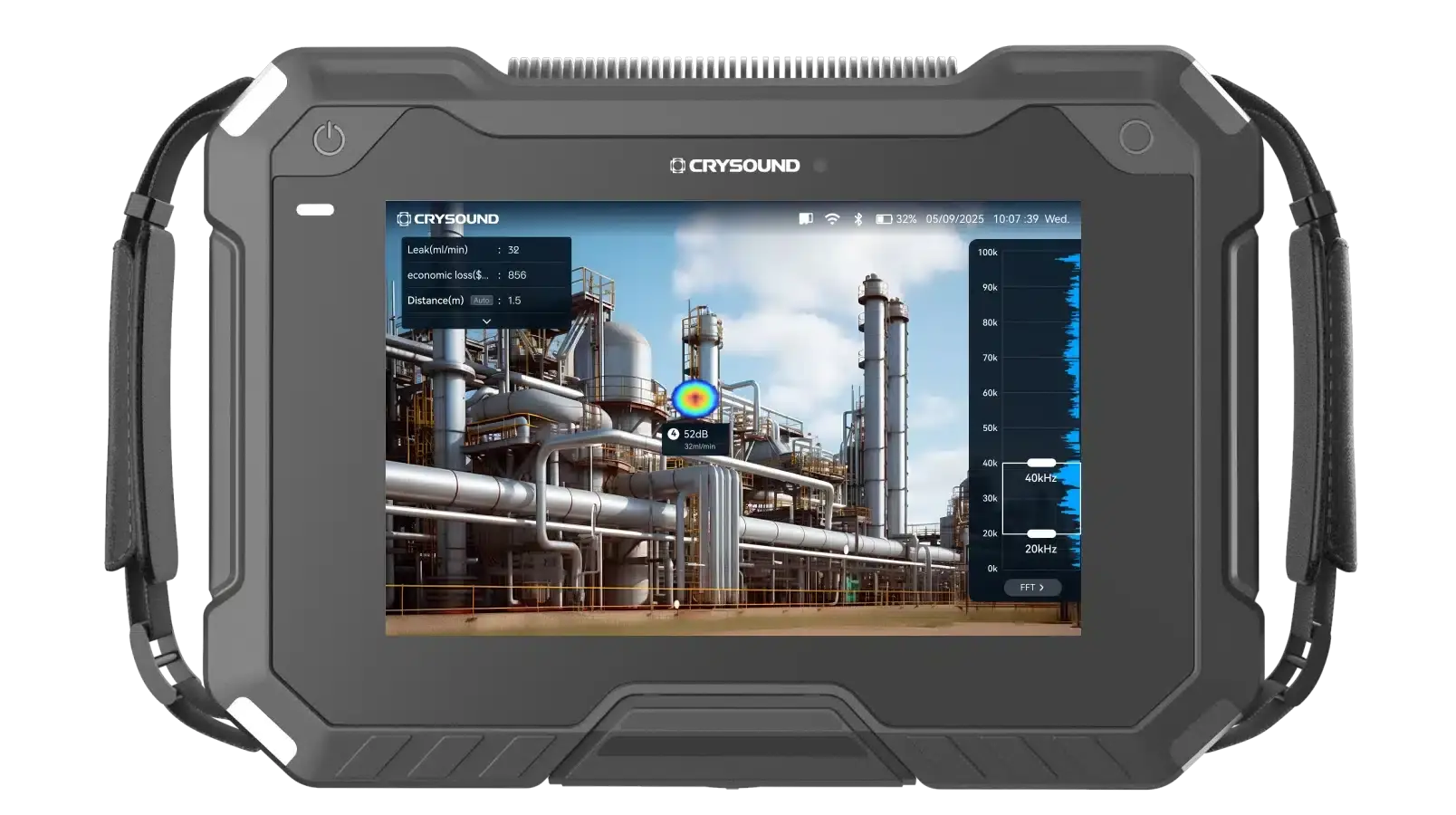

CRY8124 Advanced Acoustic Imaging Camera

CRY8124 is an advanced handheld acoustic imaging camera for locating and quantifying gas or vacuum leaks, identifying partial discharge and investigating mechanical sound sources. Its 200-microphone array covers frequencies up to 100 kHz and test distances up to 200 m.

Key features

• 200 MEMS microphones
• Leak-rate measurement and loss estimation
• Partial discharge localization and type recognition
• PC software for offline analysis and reports
• IP54 enclosure

Applications

• Compressed gas and vacuum leak detection
• Partial discharge diagnostics in electrical equipment
• Mechanical equipment inspection
• Industrial noise-source localization

Key technical data

• Frequency range: 2 kHz to 100 kHz
• Test distance: 0.2 m to 200 m
• 8-inch 1920 × 1200 touchscreen
• Weight: 1.4 kg
• Two replaceable batteries provide up to 10 hours total operation
