NDT Equipment, Ultrasonic Stress Detectors

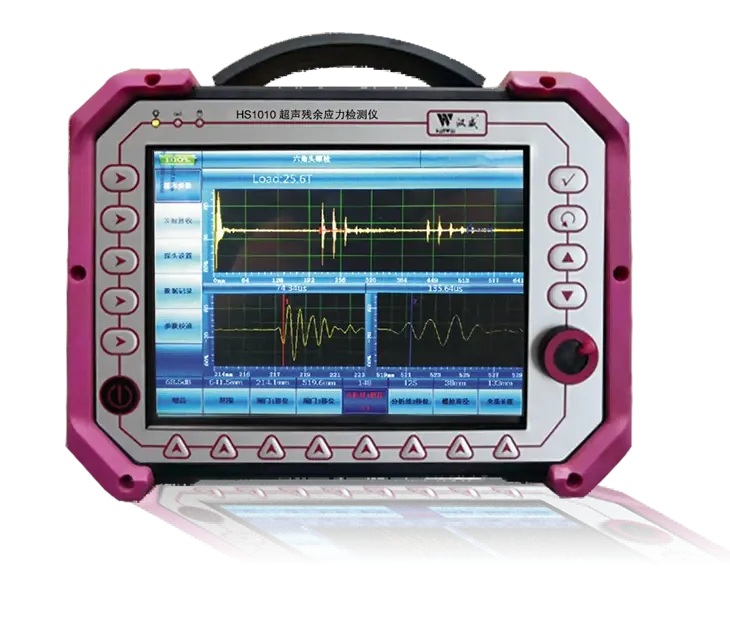

HS 1010 Ultrasonic Residual Stress Detector
The HS 1010 is a portable ultrasonic instrument for non-destructive measurement of residual stress in welded joints and engineering materials. Fast in-situ readings and built-in acoustoelastic data support inspection of metals and selected non-metallic materials.
Guaranteed Safe Checkout:
Overview
The HS 1010 measures residual stress non-destructively through the acoustoelastic response of sound-transmitting materials. It supports steel, iron, aluminum, copper and titanium alloys as well as glass, ceramics and carbon-fiber composites.
Built-in elasticity data for common engineering materials and direct measurement in the inspection area make the instrument suitable for rapid field assessment, particularly around welded joints.
Performance Features
- Non-destructive residual-stress measurement
- Acoustic-time measurement resolution down to 1 ns
- Support for steel, iron, aluminum, copper and titanium alloys
- Support for glass, ceramics and carbon-fiber composites
- Built-in acoustoelastic data for common materials
- Rapid direct measurement in the inspection area
- Compact and portable design
- Specified stress-measurement accuracy of ±10% or better
- 8.4-inch display with 800 × 600 resolution
- Continuous battery operation exceeding 5 hours
Applications
- Residual-stress measurement in engineering materials
- Stress assessment in welded joints
- Field inspection of metallic components
- Selected glass, ceramic and composite components
Key Specifications
| Parameter | Value |
|---|---|
| Measurement type | Ultrasonic residual stress |
| Acoustic-time resolution | Up to 1 ns |
| Receiving bandwidth | 0.5–20 MHz |
| Stress-measurement accuracy | ≤ ±10% |
| Display | 8.4 in, 800 × 600 |
| Interfaces | USB, LAN, VGA |
| Storage | 64 GB |
| Battery operation | > 5 hours |
