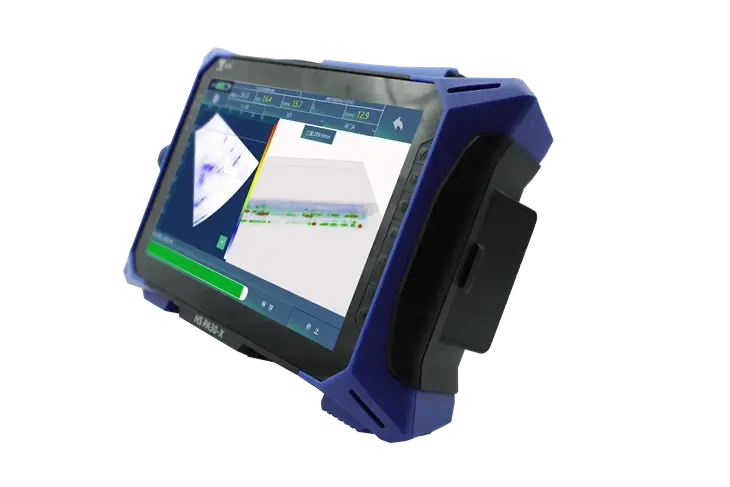

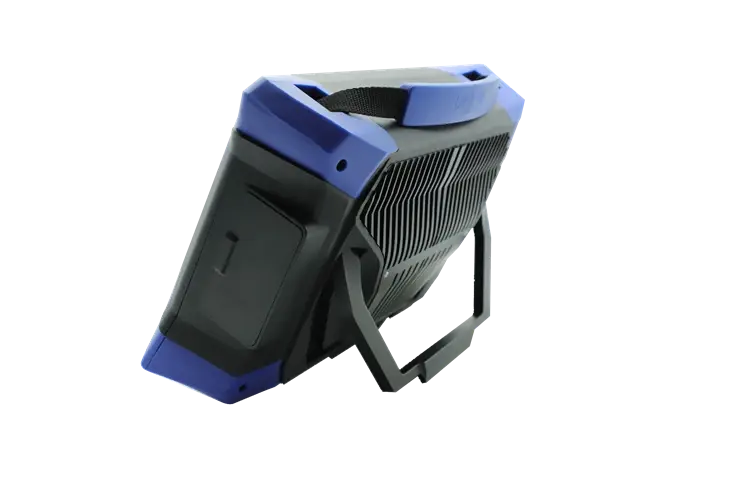

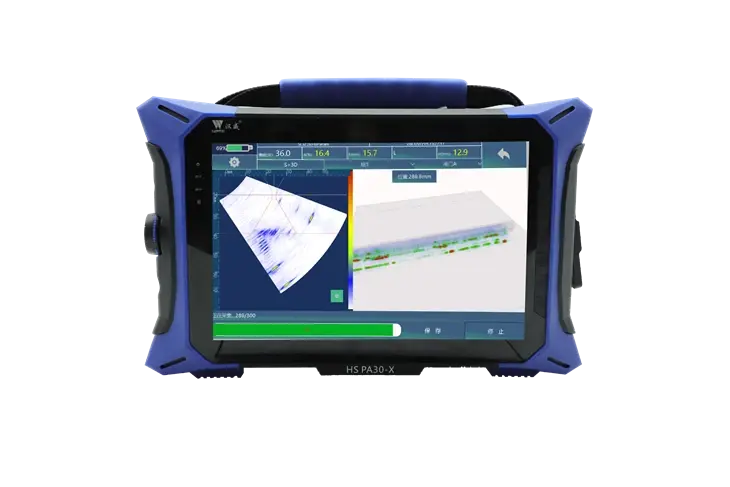

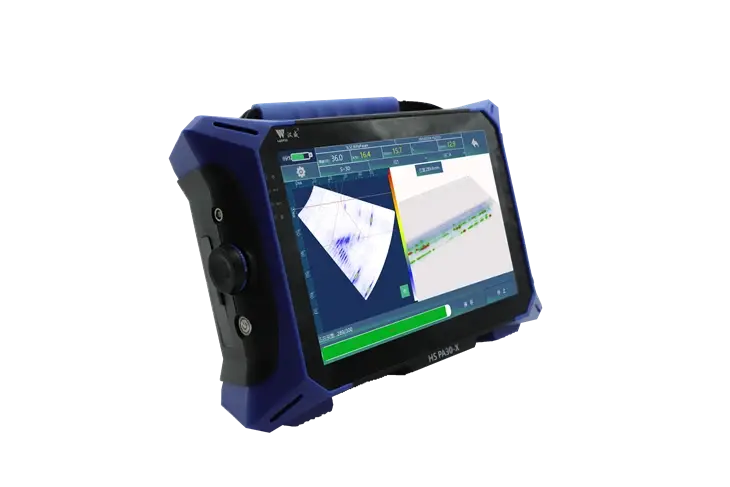

HSPA30-X Phased Array Ultrasonic Detector
The HSPA30-X is a high-channel-count phased-array detector for advanced ultrasonic examination of welds and complex components. PA, TFM, PCI, PWI, TOFD and A-scan modes provide broad inspection coverage with up to 1024 focal laws.
Guaranteed Safe Checkout:
Overview
The HSPA30-X combines conventional phased-array inspection with full-matrix and advanced imaging techniques in a 64/128 PR architecture. It is intended for accurate detection, localization and evaluation of internal defects in metallic and non-metallic structures.
A large touchscreen, eight TOFD channels and multiple display views support detailed examination of plates, welds, castings, forgings and pipes.
Performance Features
- 64/128 PR phased-array configuration
- PA, TFM, PCI, PWI, TOFD and A-scan modes
- Eight TOFD channels
- Automatic phased-array element calibration
- A, B, C, L, S and 3D views
- Up to 1024 focal laws
- 12.1-inch capacitive touchscreen with 1280 × 800 resolution
- USB 3.0, Gigabit Ethernet and HDMI
- Continuous operating time of at least 4 hours
Applications
- Carbon, stainless and alloy steels
- Copper and aluminum components
- Non-metallic materials
- Plates and welded joints
- Castings and forgings
- Pipes and complex structures
Key Specifications
| Parameter | Value |
|---|---|
| PA configuration | 64/128 PR |
| Inspection modes | PA, TFM, PCI, PWI, TOFD, A-scan |
| TOFD channels | 8 channels (4 pitch-catch pairs) |
| Focal laws | Up to 1024 |
| Display views | A, B, C, L, S, 3D |
| Display | 12.1 in, 1280 × 800 capacitive touchscreen |
| Storage | 1 TB SSD |
| Interfaces | USB 3.0, Ethernet, HDMI, dual encoder |
| Battery operation | ≥ 4 hours |
