NDT Equipment, Ultrasonic Stress Detectors

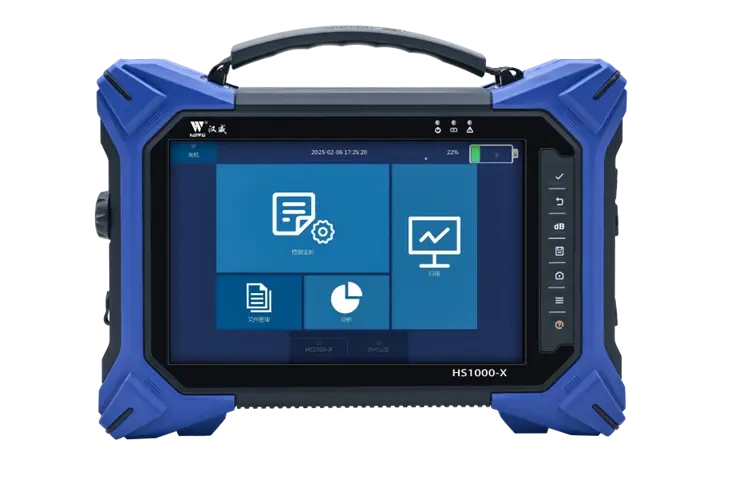

HS 1000-X Ultrasonic Stress Comprehensive Tester
The HS 1000-X is a three-channel ultrasonic system for comprehensive measurement of residual, service and fastener stress. Piezoelectric and electromagnetic channels, 1 GHz sampling and 1 ns acoustic-time accuracy support rapid non-destructive assessment in the field.
Guaranteed Safe Checkout:
Overview
The HS 1000-X combines a conventional piezoelectric channel, an electromagnetic shear/longitudinal-wave channel and an electromagnetic guided-wave channel. It measures residual and applied stresses in sound-transmitting materials and supports preload assessment in bolted structural connections.
Built-in acoustoelastic data for common materials reduce setup time for installation, in-service and online inspections in bridge, energy and industrial applications.
Performance Features
- Three independent hardware measurement channels
- 1 GHz digital sampling frequency across all channels
- Acoustic-time measurement resolution down to 1 ns
- Piezoelectric ultrasonic channel
- Electromagnetic shear/longitudinal-wave channel
- Electromagnetic guided-wave channel
- Rapid, non-destructive measurement without damaging the component
- Built-in acoustoelastic data for common engineering materials
- 10.1-inch capacitive touchscreen with 1280 × 800 resolution
- 256 GB storage and at least 4 hours of operation
Applications
- Residual and service stress measurement
- Plates, welds, castings, forgings and pipes
- Fastener and bolt-preload assessment
- Bridge structures and wind-energy systems
- Installation, in-service and online monitoring
Key Specifications
| Parameter | Value |
|---|---|
| Hardware channels | 3 |
| Channel types | Piezoelectric; electromagnetic shear/longitudinal; electromagnetic guided wave |
| Sampling frequency | 1 GHz / 8 bit |
| Acoustic-time resolution | Up to 1 ns |
| Digital sampling points | 4096 |
| Display | 10.1 in, 1280 × 800 capacitive touchscreen |
| Storage | 256 GB |
| Battery operation | ≥ 4 hours |
