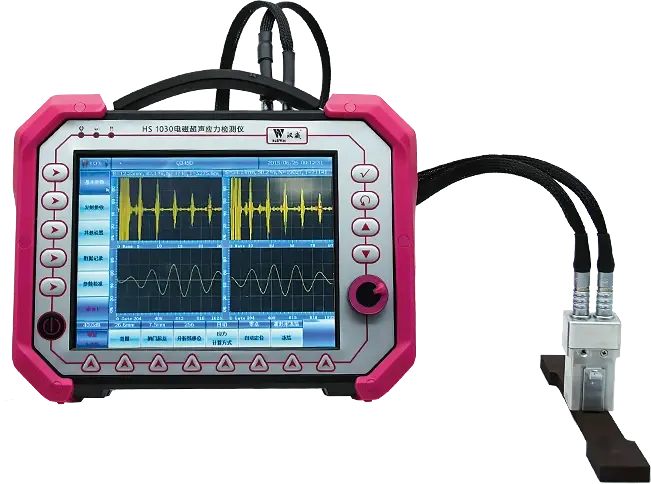

HS 1030 Electromagnetic Ultrasonic Stress Detector
The HS 1030 is a non-contact electromagnetic acoustic instrument for measuring longitudinal, transverse, residual and bolt-tightening stress. It works without couplant or surface grinding and can inspect through paint and protective coatings, including on hot surfaces.
Guaranteed Safe Checkout:
Overview
The HS 1030 uses orthogonally polarized shear-wave acoustic-time differences to evaluate stress without physical acoustic coupling. The non-contact method removes coupling-layer delay and allows measurements on coated or high-temperature surfaces.
Real-time dual-channel display supports comparison of longitudinal and transverse stress components as well as residual and bolt-tightening stress.
Performance Features
- Non-contact electromagnetic acoustic measurement
- No couplant or surface grinding required
- Measurement of longitudinal and transverse stress
- Residual-stress and bolt-tightening-stress evaluation
- Inspection through paint and anti-corrosion coatings
- Suitable for elevated-temperature surfaces
- Dual-channel real-time display
- Specified stress-measurement accuracy of ±10% or better
- Continuous battery operation exceeding 5 hours
Applications
- Residual-stress measurement
- Bolt-tightening-stress measurement
- Painted and anti-corrosion-coated components
- High-temperature surfaces
- Field inspection where couplant is undesirable
Key Specifications
| Parameter | Value |
|---|---|
| Measurement method | Non-contact electromagnetic acoustic |
| Receiving bandwidth | 4–5 MHz |
| Channels | Dual-channel real-time display |
| Stress-measurement accuracy | ≤ ±10% |
| Display | 8.4 in, 800 × 600 |
| Interfaces | USB, LAN, VGA |
| Storage | 64 GB |
| Battery operation | > 5 hours |
